Product Price :
$45,000.00-$100,000.00/setMix type :
Transit mixWarranty :
12 MonthsPayment :
T/T,L/C,T/T & L/COrigin :
FUJIAN,CHINALead Time :

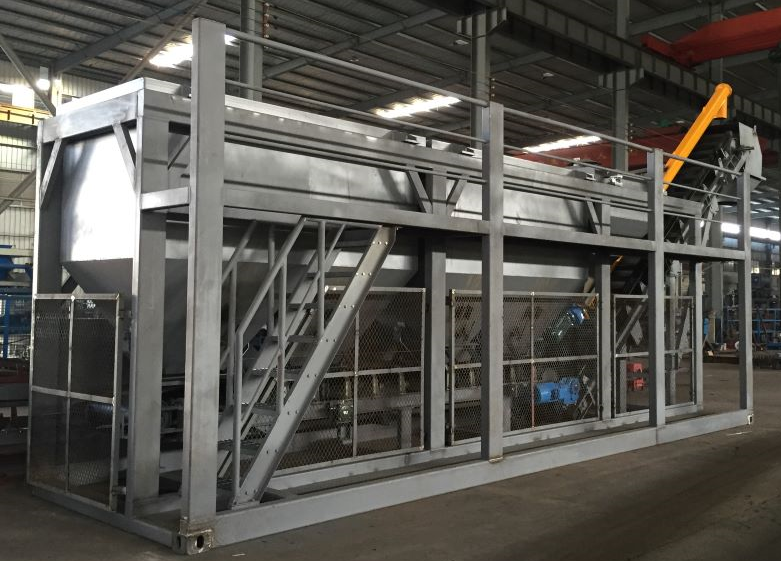

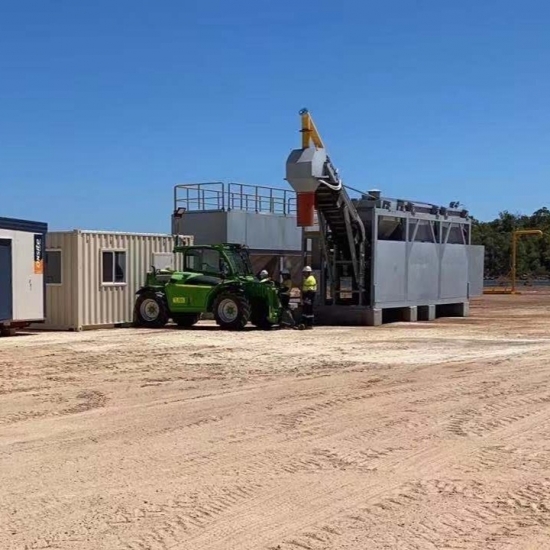

50 DAYSMobile dry mix batching plants designed as customer order, which can be mounted on a semi-trailer, so it can be moved from site to site easily,equipped with 40T trailer mounted low level box silo, so the whole set plant can be mounted on 2 semi-trailers, and towed by one tractor, due to the foundation free, the mobile dry mix batch plant is very suit for ongoing project, small scale project and so on, and the efficiency of the plant will help you to get more contracts.
The Feature of truck mounted dry mix batch plants:
1. Without mixer, low energy consumption
2. Low investment cost, and low maintenance cost.
3. Less noise emission
4. Simple structure, stand small footprint
5. Can be auto and manual control
6. Foundation free
7. Equipped quick lugs, install easy and fast
8. Truck mounted, easy to move
|
Model |
YHZG50 |
|
Theoretical production（m3/hr） |
50 |
|
Aggregate hopper qty |
2 |
|
Aggregate hopper capacity（m3） |
6.2 |
|
Aggregate weighing capability (kg) |
4800 |
|
Belt conveyor capability (t/hr) |
400 |
|
Cement weighing capability (kg) |
600 |
|
Water weighing capability (kg) |
300 |
|
Additive weighing capability (kg) |
30 |
|
Produce cycle (s) |
72 |
|
Control system |
Intelligent controlling (IPC+ INSTRUMENT) |
|
Discharge height (M) |
≧3.8 |
|
Total power (kw)（without optional parts） |
≈48 |
|
Total weight(T)（without optional parts） |
20 |
|
Transportation conditions |
Truck mounted |

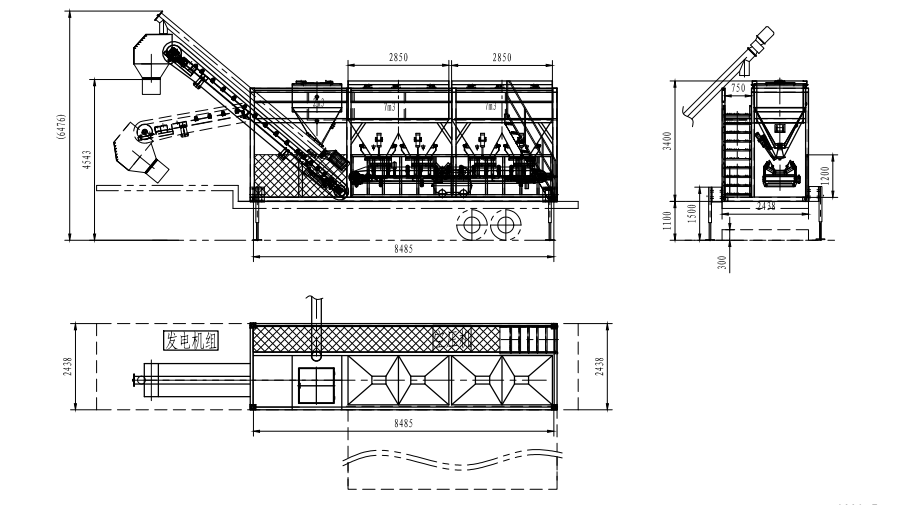

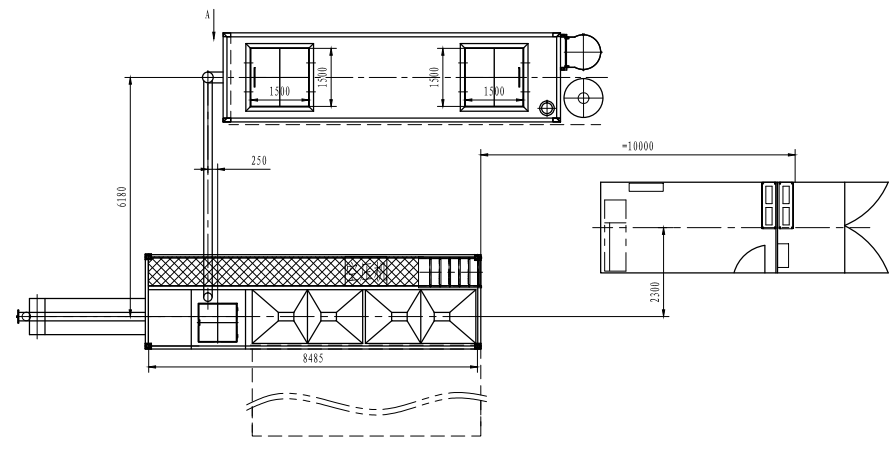

The General Layout of mobile transit mix batch plants:
