Stationary Transit Mix Concrete Batching Plant

Product Price :
$45,000.00-$55,000.00/set
Mix type :
Transit mix
Warranty :
12 Months
Payment :
T/T,L/C,T/T & L/C
Origin :
FUJIAN,CHINA
Lead Time :
25 DAYS

chat online

Specifics
Technical parameter
General layout

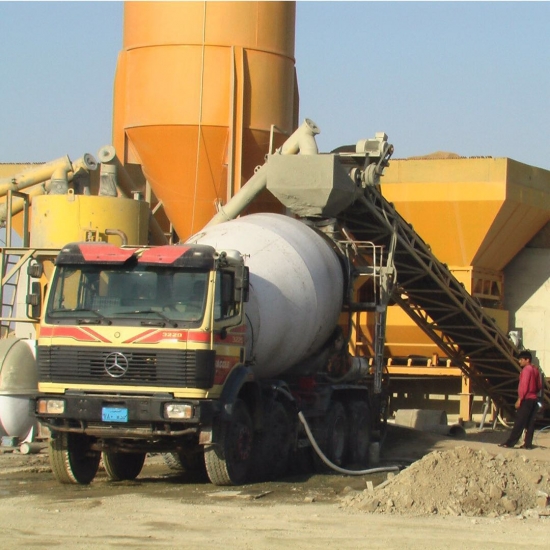

Transit Mix Concrete Batching Plant, will use mixing truck instead of mixer, the plant consist of aggregate batcher, belt conveyor, cement weighing system, water and additive weighing system and intelligent computer control system. All materials will be fed into mixing truck directly, and the finish the concrete mixing on the way to Job site, it’s very simple and efficiency, very suit for the project in remote regions and wild land.

transit mix concrete plants

The Feature of Dry mix batching plants:

1. Without mixer, low energy consumption

2. Low investment cost, and less foundation works.

3. Less noise emission

4. Simple structure, stand small footprint

5. Can be auto and manual control

6. Low maintenance cost

7. Equipped quick lugs, install easy and fast

8. Easy to relocated

Model	HZG75-90
Theoretical production（m3/hr）	75-90
Aggregate hopper qty	3/4
Aggregate hopper capacity（m3）	13-15
Aggregate weighing capability (kg)	2400
Belt conveyor capability (t/hr)	400
Cement weighing capability (kg)	600
Water weighing capability (kg)	250
Additive weighing capability (kg)	20
Produce cycle (s)	72
Control system	Intelligent controlling (IPC+ INSTRUMENT)
Discharge height (M)	≧3.9
Total power (kw)（without optional parts）	≈60
Total weight(T)（without optional parts）	21-25
Transportation conditions	2*40HQ Container

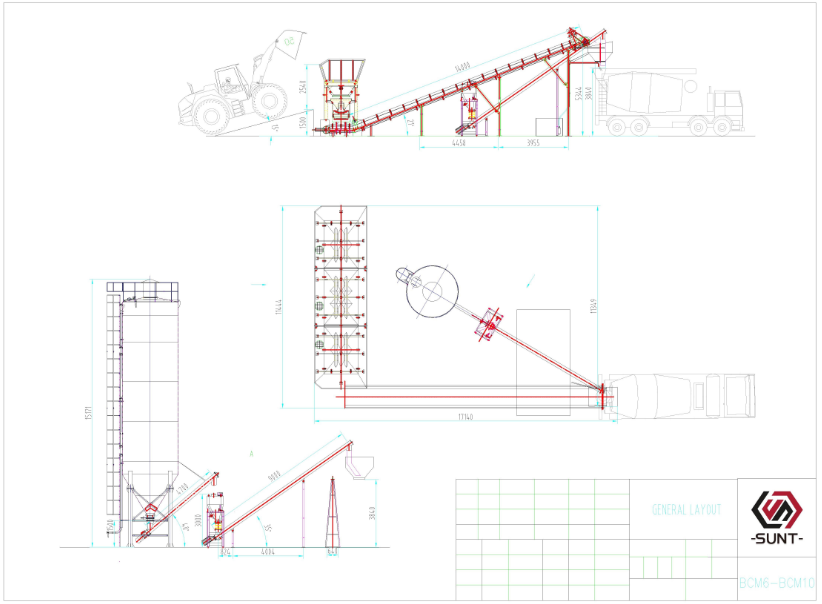

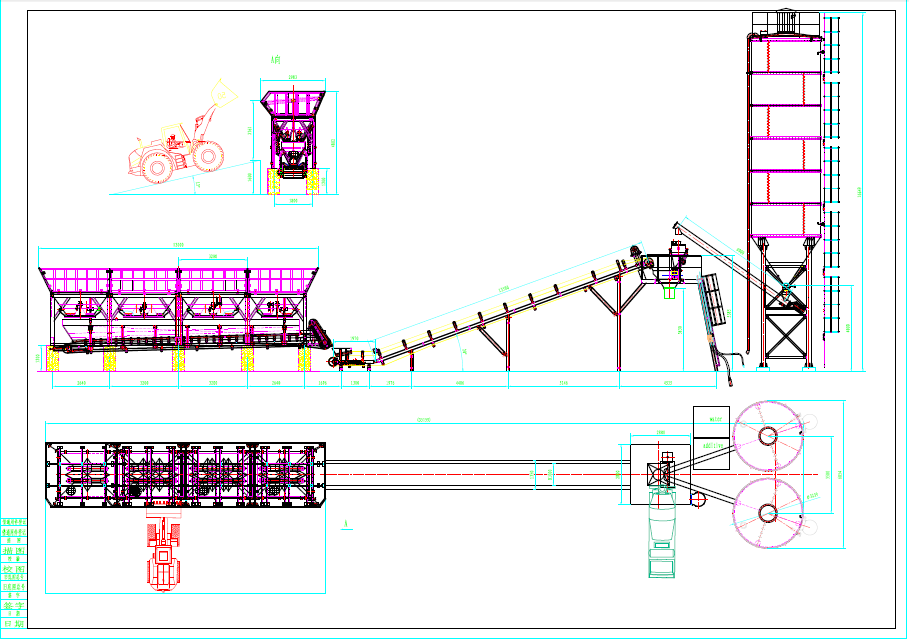

The General Layout of Transit mix batch plants:

batching plant without mixer
