Product Price :
$26,500.00-$36,800.00/setMix type :
Transit mixWarranty :
12 MonthsPayment :
T/T,L/C,T/T & L/COrigin :
FUJIAN,CHINALead Time :
25 DAYSDry Mix Concrete Batching Plant, consist of aggregate batcher, belt conveyor, cement weighing system, water and additive weighing system and intelligent computer control system. All materials will be fed into mixing truck directly, and the finish the concrete mixing on the way to Job site, it’s very simple and efficiency, very suit for the project in remote regions.
The Feature of Dry mix batching plants:
1. Without mixer, low energy consumption
2. Low investment cost, and less foundation works.
3. Less noise emission
4. Simple structure, stand small footprint
5. Can be auto and manual control
6. Low maintenance cost
7. Equipped quick lugs, install easy and fast
8. Easy to relocated
|
Model |
HZG40-50 |
|
Theoretical production（m3/hr） |
40-50 |
|
Aggregate hopper qty |
1/2 |
|
Aggregate hopper capacity（m3） |
5-8 |
|
Aggregate weighing capability (kg) |
2000 |
|
Belt conveyor capability (t/hr) |
200 |
|
Cement weighing capability (kg) |
450 |
|
Water weighing capability (kg) |
150 |
|
Additive weighing capability (kg) |
15 |
|
Produce cycle (s) |
45 |
|
Control system |
Intelligent controlling (IPC+ INSTRUMENT) |
|
Discharge height (M) |
≧3.9 |
|
Total power (kw)（without optional parts） |
≈60 |
|
Total weight(T)（without optional parts） |
18/21 |
|
Transportation conditions |
2*40HQ Container |

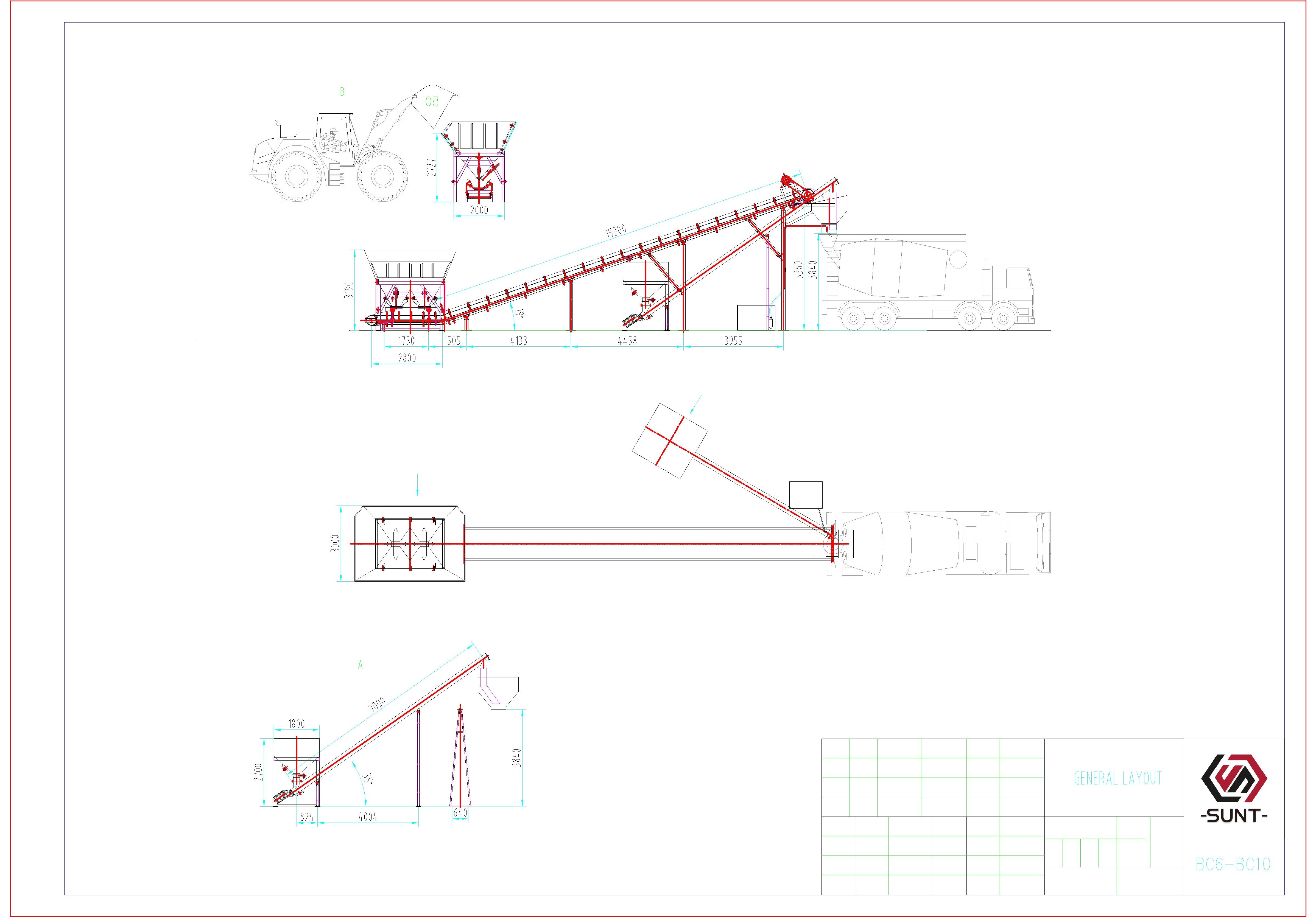

The General Layout of Dry Mix Concrete Plants:
