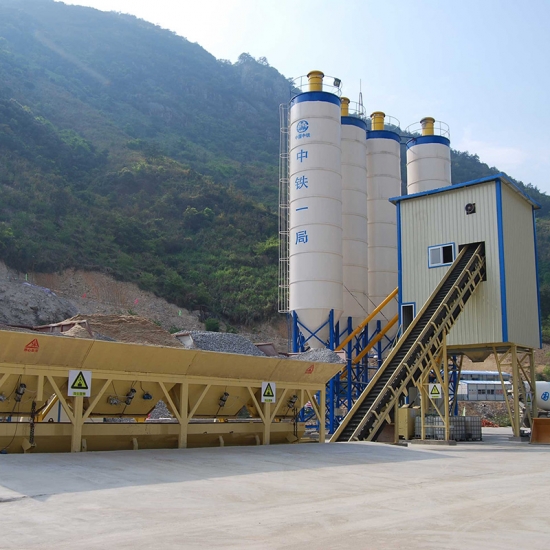

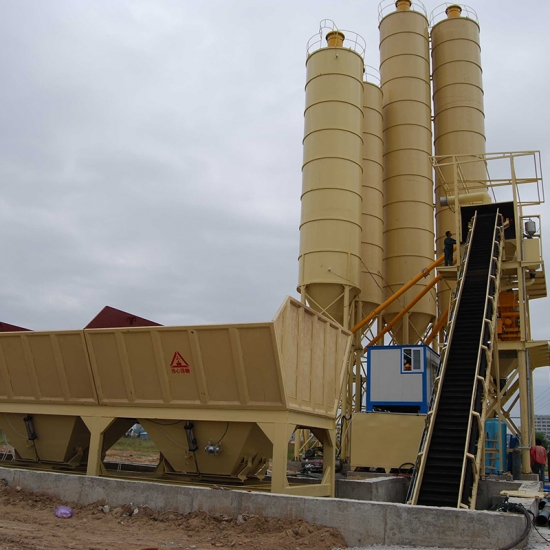

Aggregate batcher

● Suitable for storage 3-4 different types aggregate

● Equipped TAIWAN AIRTAC air cylinder to control the discharge gate

● Equipped HK CHIMEI load cell, guarantee the weighing accuracy

● Equipped OLI vibrator to make sure smooth feeding.

● Each bins with top screen mesh to avoid oversize aggregate

● Inside vibrating design available

Trough belt conveyor

● Up to 45 degree inclination, stand small area

● Equipped with pulling switch for emergency stop

● Equipped with spiral roller and alloy cleaner to clean the belt

● Rain cover available to reduce the dust emission and protect the belt

Aggregate Transit hopper

To make sure the continuous production , when the 1st batch mixing , the 2nd  batch weighing at the same time, more efficiency and high production.

Mixing system

● Twin-shaft compulsory mixer

● Heavy duty design and multi seal protection

● Equipped wear-resistant alloy blade and lining tile(changeable), the continuously mixing can up to  160,000 times

● With maintenance and observing gate

● Equipped with auto lubricate pump

Cement and fly ash weighing

● Adopting air vibrating system, vibrating evenly and better to protect the hopper

● 3 nos load cells to guarantee the weighing precision

● Equipped SICOMA pneumatic butterfly valve

● Reasonable permeability design can balance the pressure during filling.

Water and additive weighing

● Rough and precise weighing design to ensure the measurement accuracy

● Equipped with stainless steel tank and pump for additive to against rust and corrosion

● Equipped with Electro-pneumatically operated butterfly valve

Pneumatic system

● Equipped with TAIWAN FUSHENG air compressor

● Adopting TAIWAN AIR TAC air cylinders, valves, hoses, filters and other fittings

● Equipped with small air bag for aggregate batcher to guarantee the enough pressure

Intelligent computer control system

● Fully automatic and manual operation of the system is possible

● All cable /wire with tracking code to provide easy maintenance

● HK CHIMEI weighing indicators are equipped on control panels

● Adopting SIENMENS or SCHNEIDER relay, button, air breaker and contactor

● Full automatic concrete productions on computer inventory entry and inventory reports

● Flexible production with lots of parameters.

● Records for every batch separately.

Model

HZS75

Theoretical production（m3/hr）

75

Aggregate hopper qty

3-4

Aggregate hopper capacity（m3）

15

Aggregate weighing capability (kg)

3500

Slant belt conveyor

Trough belt

Belt conveyor capability (t/hr)

300

Cement weighing capability  (kg)

900

Fly ash weighing capability(kg)

300

Water weighing capability (kg)

500

Additive weighing capability (kg)

20

Mixer model

MSO2250

Mixer capacity (M3)

1.5

Mixing type

Twin shaft

Mixing cycle (s)

72/60

Control system

Intelligent controlling (IPC+INSTRUMENT)

Discharge height (M)

≧4

Total power (kw)（without optional parts）

≈108

Total weight(T)（without optional parts）

42

Transportation conditions

4*40HQ Container
