Product Price :
1/50Color :
Customer orderApplication :
Suit for mining area, cement plant, power plant, steel factory...Warranty :
12 MonthsLoading port :
Xiamen, ChinaOrigin :
FUJIAN,CHINALead Time :

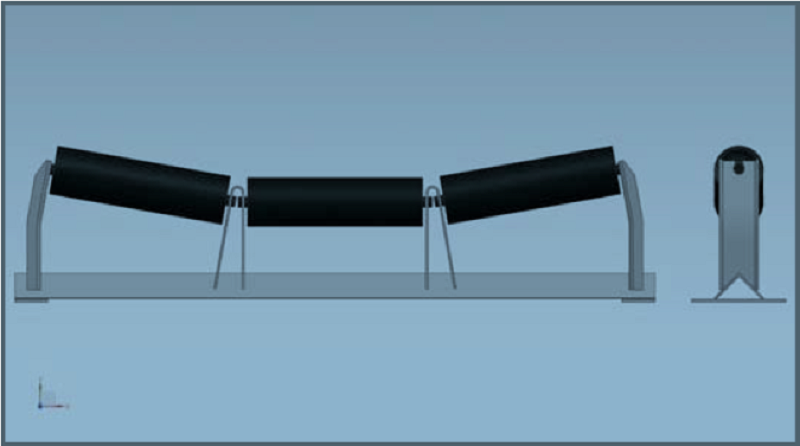

15 working daysTrough idler is used to support conveyor belts and material. Standard trough angle is generally divided into 30°,35°,45°. It includes the standard type and the forward type which can be arranged throughout thewhole course to prevent the conveyor belt from off tracking.
Main feature of trough idler:
The idlers are lubricated and free from maintenance,
Service life time is up to 30,000 hours or more,
All idlers must be passed QC strictly before shipper out,
Customized welcome

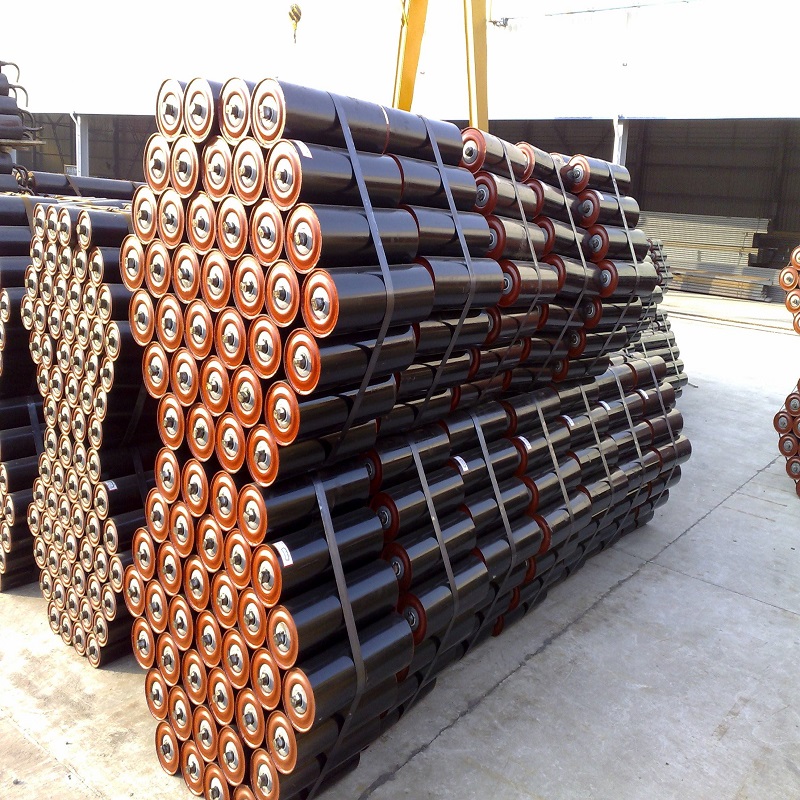

Packing of trough idler:
The Steel trough roller will be padded with paper or soft things before loading to wooden case, The Rubber trough roller will be packed into wooden case directly:
|
SPECIFICATIONS
|
|
|
Diameter
|
φ89, φ102, φ108, φ114, φ127, φ133, φ139, φ152, φ159, φ165, φ194
|
|
Length
|
145mm-2800mm
|
|
Tube
|
Q235(GB), Q345(GB), welded with DIN2394 standed
|
|
Shaft
|
A3 and 45# steel(GB)
|
|
Bearing
|
Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
|
|
Bearing Housing/Seat
|
Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard |
|
Lubricating Oil
|
Grade 2 or 3 long-lasting lithium greasae
|
|
Welding
|
Mixed gas shielded arc welding end
|
|
Painting
|
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
|
