Spiral Return Idlers
  • Excellent Performance Spiral Return Roller for Belt Conveyor
  • Excellent Performance Spiral Return Roller for Belt Conveyor
  • Excellent Performance Spiral Return Roller for Belt Conveyor

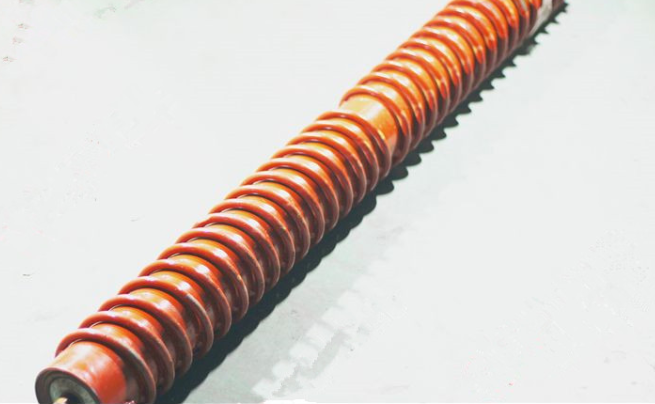

Excellent Performance Spiral Return Roller for Belt Conveyor
  • Product Price :

    US$10.00 - US$50.00/
  • Color :

    Customer order
  • Application :

    Suit for mining area, cement plant, power plant, steel factory...
  • Warranty :

    12 Months
  • Loading port :

    Xiamen, China
  • Origin :

    FUJIAN,CHINA
  • Lead Time :

    15 working days
chat online
  • Specifics
  • Technical parameter

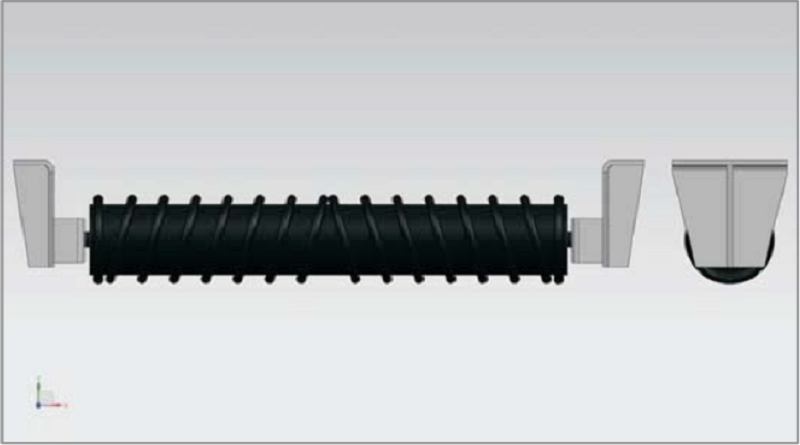

  • General layout

Spiral return roller is used to support the returning conveyor belt, clean the residual materials sticked to the belt surface, and keep belt running smoothly in a line, it's very suit for flat belts conveyor, like concrete batching plant, stone crushing plant, coal mining plant and so on...

screw return roller

Main feature of spiral return roller:


  1. The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected,
  2. The idlers are lubricated and free from maintenance,

  3. Service life time is up to 30,000 hours or more,

  4. All idlers must be passed QC strictly before shipper out,

  5. Customized welcome

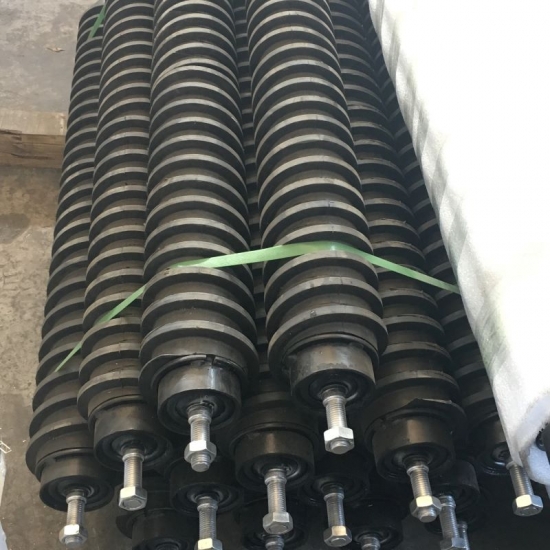

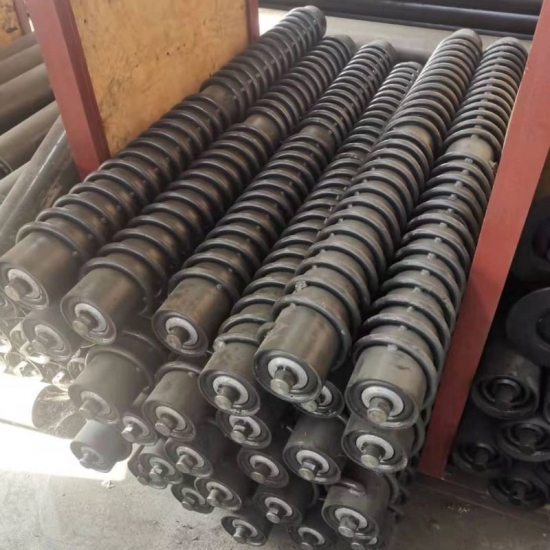

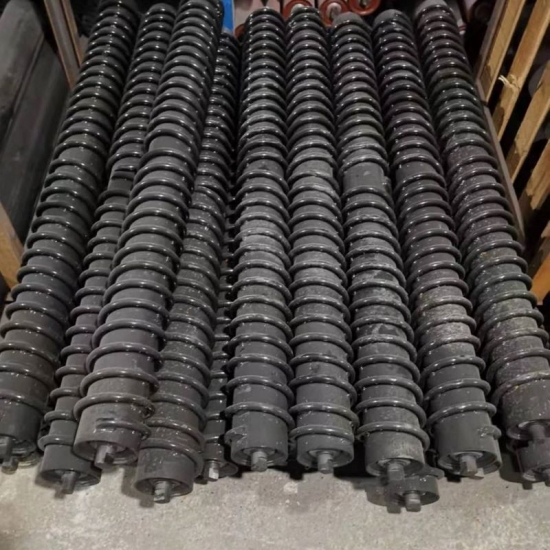

Packing of spiral roller:


The Steel Spiral roller will be padded with paper or soft things before loading to wooden case, The Rubber spiral roller will be packed into wooden case directly:

buffer rollers


Description

Excellent Performance Spiral Return Roller for Belt Conveyor

Tube

Steel Q235(GB), Q345(GB), stainless steel (201,304), rubber, nylon, HDPE, UHMWPE

Roller Dia. (mm)

φ89, φ102, φ108,  φ133, φ152, φ159 φ194 or customized

Bearing

Single & Double Row Deep Groove Ball Bearing, with brand of HRB, SKF,FAG,NSK...

Bearing housing/seat Cold press working fit ISO M7 accuracy; Deep Press steel with raw material fit DIN 1623-1624 standard
Shaft

A3 and 45# steel(GB) or customized

Lubrication oil

Grade 2 or 3 long-lasting lithium greasae

Welding

Mixed gas shielded arc welding end

Finish painting

Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting


spiral idlers
