impact rubber disc idler conveyor roller
  • Steel impact rubber disc idler conveyor roller
  • Steel impact rubber disc idler conveyor roller
  • Steel impact rubber disc idler conveyor roller
Steel impact rubber disc idler conveyor roller
  • Product Price :

    $3-$50/pcs
  • Color :

    Customer order
  • Application :

    Suit for mining area, cement plant, power plant, steel factory...
  • Warranty :

    12 Months
  • Loading port :

    Xiamen, China
  • Origin :

    FUJIAN,CHINA
  • Lead Time :

    15 working days
chat online
  • Specifics
  • Technical parameter
  • General layout

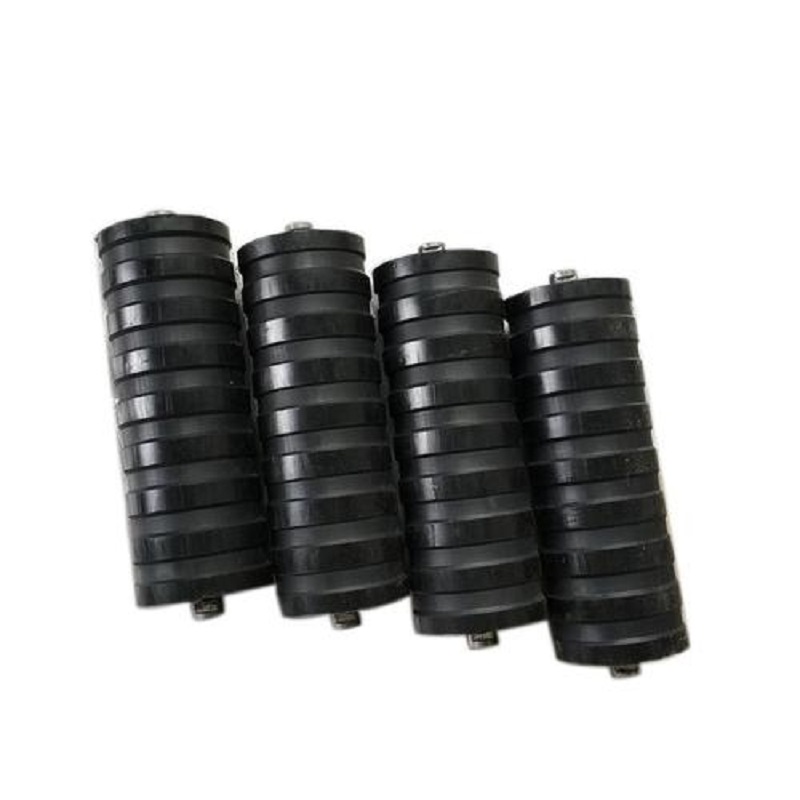

Impact idler is installed under the feeding section. Roller surface is covered with rubber to absorb the impact kinetic energy on the conveyor belt when conveying materials fall down and extend the working life of the conveyor belt.

impact rubber roller

Main feature of impact idler:


  1. The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected,
  2. The idlers are lubricated and free from maintenance,

  3. Service life time is up to 30,000 hours or more,

  4. All idlers must be passed QC strictly before shipper out,

  5. Customized welcome


Packing of impact idler:


The Steel impact roller will be padded with paper or soft things before loading to wooden case, The Rubber impact roller will be packed into wooden case directly:

buffer rollers




SPECIFICATIONS
Diameter
φ89, φ102, φ108, φ194 or custom
Length
145mm-2800mm or custom
Tube
Q235(GB), Q345(GB), welded with DIN2394 standed
Shaft

A3 and 45# steel(GB)
Bearing
Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
Bearing Housing/Seat
Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard
Lubricating Oil
Grade 2 or 3 long-lasting lithium greasae
Welding
Mixed gas shielded arc welding end
Painting
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

impact rubber idler
