Product Price :
$75-140/meterColor :
BlackPayment :
TT,L/COrigin :
ChinaLead Time :

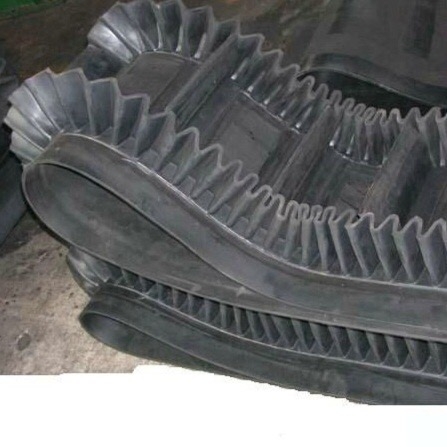

10 working daysCleat sidewall groovy conveyor belts are composed of three parts:base belt,sidewall and cleats, and with below features:
1, Possible to convey at steep angle with big capacity in a limited space
2, Special treated steel mesh inserted into both top cover and bottom cover,creating an excellent combination of longitudinal flexibility and transverse rigidity.
3, The Cleat sidewall groovy conveyor belts are highly durable,low elongation and long lasting
 |
Corrugated Sidewall Corrugated Sidewall is hot vulcanized on the base belt High quality rubber to guarantee sidewall withstand highly stress and repeated flexing Fabric inside sidewall perfectly combine flexibility and strength to effectively avoid torn
Sidewall height ranges from 40mm to 400mm |
|

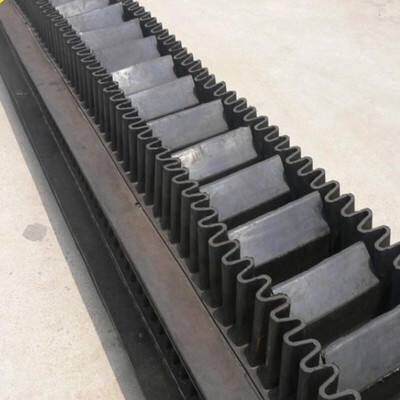

Cleats Cleats are also hot vulcanized on the base belt Fabric inside cleats protect cleats from deformation caused by impact. Cleats are the main part to carry materials in a high capacity and steep angle Available with T,C or TC type Special compounds to extremely avoid deformation caused by impact. |
 |
|
Application of sidewall groovy conveyor belts: widely used in the field of ready mix concrete batching plant
|
|
|

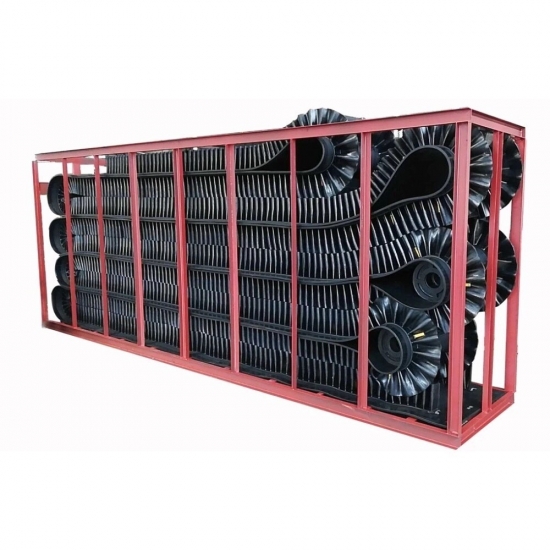

Packing of sidewall groovy conveyor belt: The rubber aggregate conveying belt normally packed in iron frame box as follow picture showing
|
|
|
|
|
The specification of Cleat sidewall groovy conveyor belts:
The layout of Groovy conveyor belt:
