7-15 working daysContainerized cement silo, which can be dissambled piece by piece, and easy to be loaded into containers for overseas transportation, and reduce the shipping cost. Widely used in cement industry and ready mixed concrete field.
Main features of Containerized cement silos:
 |

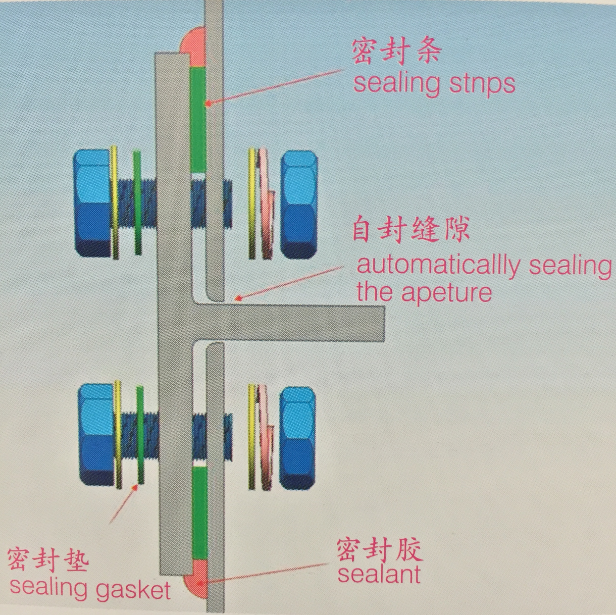

Self sealing design, combine with sealing strip and outside sealant, to make sure the perfect sealing and service life. |
|
Flange connecting design and processing, to guarantee the quality and shorten the leading time, it will take 1-3 working days to finish installation for medium size silo. |
 |
 |

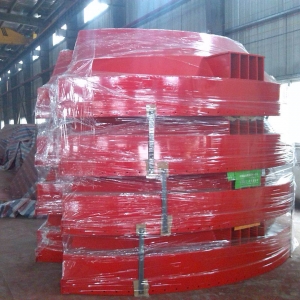

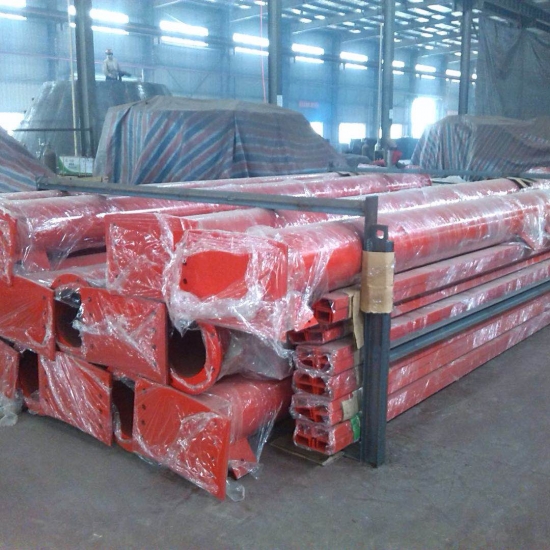

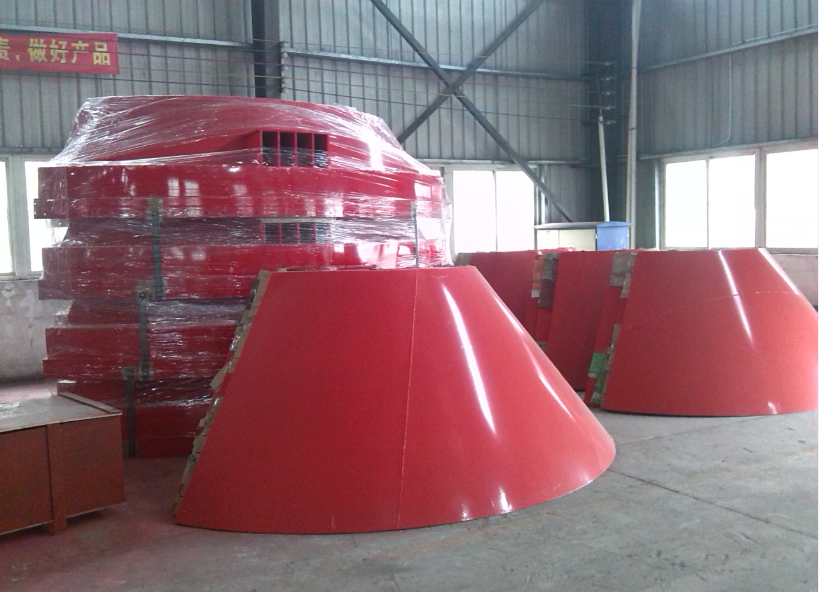

Stacking piece by piece, easy to be loaded in
container, 1 sets of 50T silo can be load in 1*20GP container |
|
Welding free design, all parts will be assembled by bolts and nuts, no need skill workers , can be installed fast. |
 |

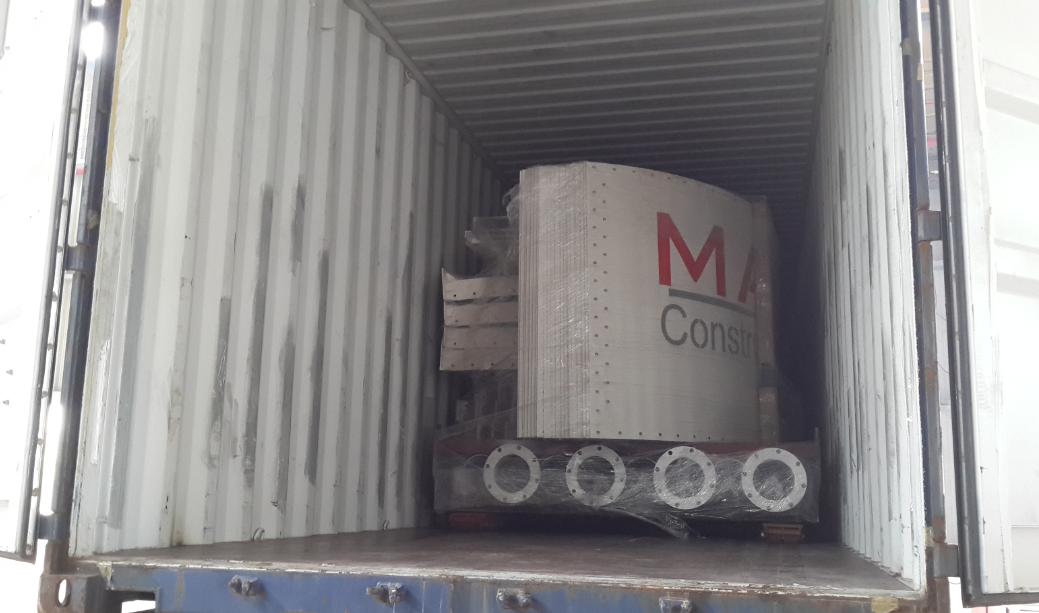

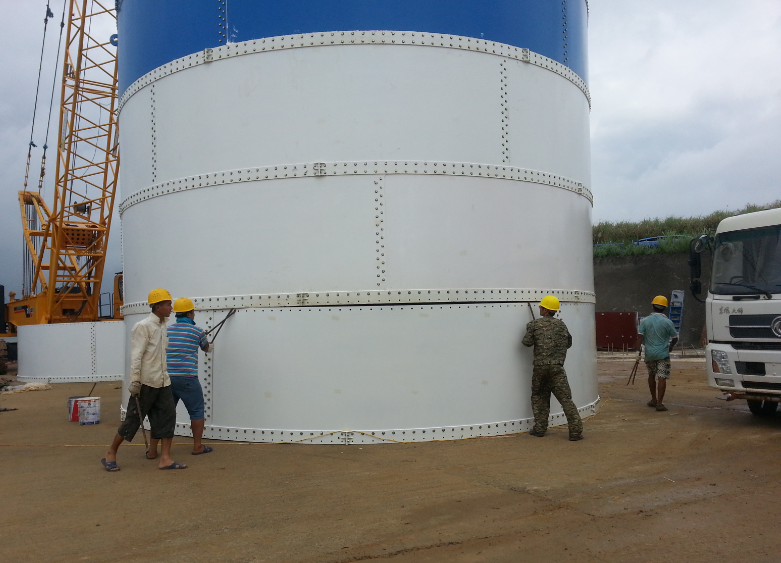

Container loading and installation in job site of Containerized cement silos:
The main technical parameter of Containerized bulk silos:
Capacity(T)
Diameter(mm)
Body Thickness (mm)
Bracing legs
Discharge height(m)
Body height(m)
Weight(T)
Container loading
30
3239
5/3
219*4
2
5.2
3.5
3 in 1*40HQ
50
3239
5/3
219*4
2
6.9
4
2 in 1*40HQ
60
3239
5/3
219*4
2
6.9
4
2 in 1*40HQ
80
3239
5/4/3
219*4
2
10
5.3
2 in 1*40HQ
100
3239
5/4/3
219*4
2
11.5
5.8
2 in 1*40HQ
150
3858
5/4/3
219*4
2
11.9
8.2
3 in 2*40HQ
200
4574
6/5/4
273*4
2
12.4
12.5
1 in 1*40HQ
300
5003
6/5/4
325*4
2
14.3
15
1 in 1*40HQ + 1*20GP

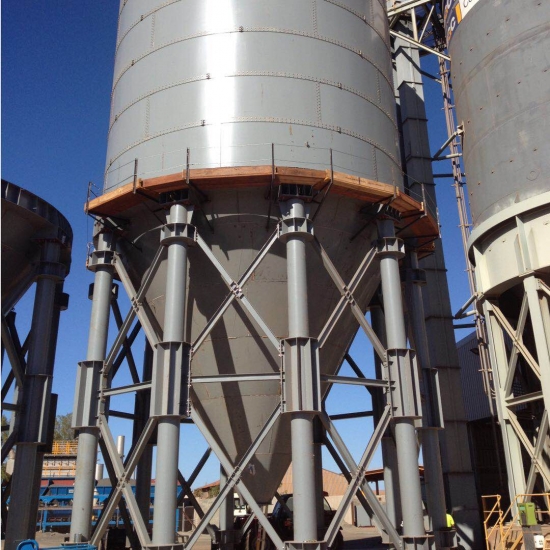

The General layout of Big steel cement silos:
