Aggregate batcher

● Each weighing system works independently at the same time.

● Equipped TAIWAN AIRTAC air cylinder to control the discharge gate

● Equipped HK CHIMEI load cell, guarantee the weighing accuracy

● Each bins with top screen mesh to avoid oversize aggregate.

● Inside vibrating design, feeding fast and damage free on outside hopper board.

Plain belt conveyor

● 20 degree inclination, feeding stable and easy to clean the belt.

● Equipped with tensioner, to avoid deviation.

● Equipped with pulling switch for emergency stop

● Double side aisle, easy to do maintenance and safety

● Equipped Rain cover to reduce the dust emission and protect the belt

 Aggregate Transit hopper

 To make sure the continuous production , when the 1st batch mixing , the 2nd  batch weighing at the same time, more efficiency and high production.

Mixing system

● Heavy duty design,stable operation

● Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage.

● Equipped wear-resistant alloy blade and lining tile(changeable), the continuously mixing can up to 160,000 times

● Multi-pipe water spraying to ensure even water distribution.

● Equipped with auto grease pump

Cement and fly ash weighing

● Adopting air vibrating system, vibrating evenly and better to protect the hopper

● 3 load cell to guarantee the weighing precision

● Equipped SICOMA pneumatic butterfly valve

● Reasonable permeability design can balance the pressure during filling.

Water and additive weighing

● Rough and precise weighing design to ensure the measurement accuracy

● Equipped with stainless steel tank and pump for additive to against rust and corrosion

● Equipped with Electro-pneumatically operated butterfly valve

Pneumatic system

● Equipped with TAIWAN FUSHENG air compressor

● Adopting TAIWAN AIR TAC air cylinders, valves, hoses, filters and other fittings

● Equipped with small air bag for aggregate batcher and mixing tower to guarantee the enough pressure

Intelligent computer control system

● Wide view control room

● Double control system Fully automatic and manual operation, in English.

● All wires & cables are coded, easy to track and maintenance

● Adopting SIENMENS or SCHNEIDER relay, button, air breaker and contactor

● Easy to set and file the production formula list.

● Easy to check the records and details

● Permission limited to change the parameter

Environment protection system

● Equipped 24m2 impulse dust filter, collection efficiency up to 99.8%. Auto clean and reuse the dust, low maintenance cost.

● External packing for mixing tower, looks beautiful, reduce the dust and noise emission

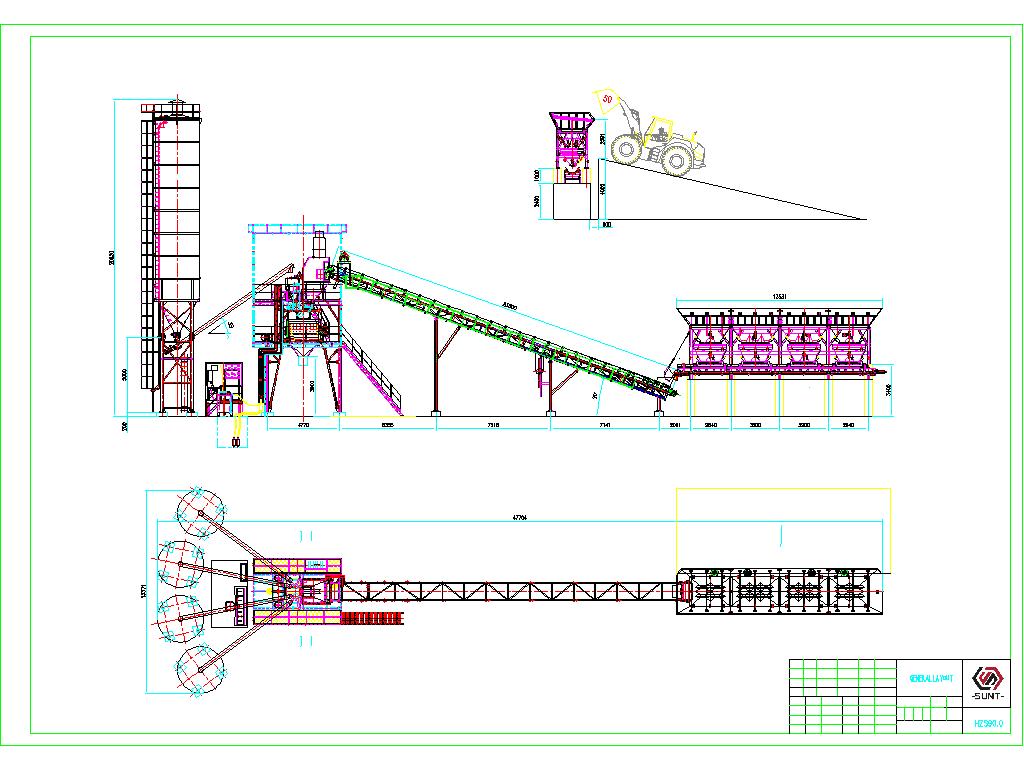

Model

HZS90

Theoretical production（m3/hr）

90

Aggregate hopper qty

4-6

Aggregate hopper capacity（m3）

15

Aggregate weighing capability (kg)

3500

Slant belt conveyor

Plane belt

Belt conveyor capability (t/hr)

350

Cement weighing capability  (kg)

900

Fly ash weighing capability(kg)

300

Water weighing capability (kg)

500

Additive weighing capability (kg)

20

Mixer model

MAO2250

Mixer capacity (M3)

1.5

Mixing type

Twin shaft

Mixing cycle (s)

60

Control system

Intelligent controlling (IPC+INSTRUMENT)

Discharge height (M)

≧4.0

Total power (kw)（without optional parts）

≈115

Total weight(T)（without optional parts）

48

Transportation conditions

5*40HQ Container
