Aggregate batcher

● Each weighing system works independently at the same time.

● Equipped TAIWAN AIRTAC air cylinder to control the discharge gate

● Equipped HK CHIMEI load cell, guarantee the weighing accuracy

● Each bins with top screen mesh to avoid oversize aggregate.

● Inside vibrating design, feeding fast and damage free on outside hopper board.

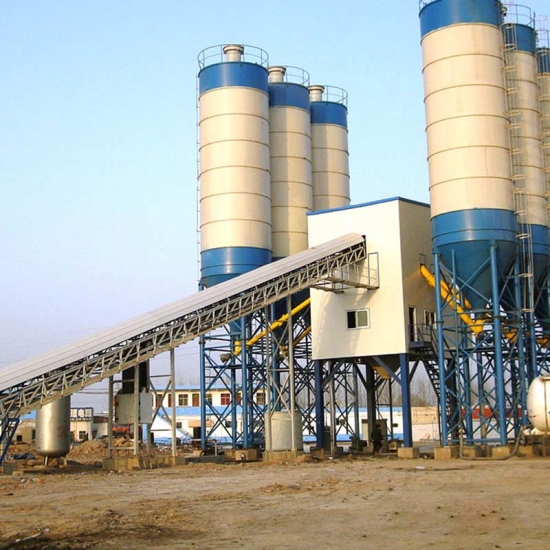

Plain belt conveyor

● 20 degree inclination, feeding stable and easy to clean the belt.

● Equipped with tensioner, to avoid deviation.

● Equipped with pulling switch for emergency stop

● Double side aisle, easy to do maintenance and safety

● Equipped Rain cover to reduce the dust emission and protect the belt

 Aggregate Transit hopper

 To make sure the continuous production , when the 1st batch mixing , the 2nd  batch weighing at the same time, more efficiency and high production.

Mixing system

● Heavy duty design,stable operation

● Shaft ends multi seal protection and air purge seal protection to efficiently prevent leakage.

● Equipped wear-resistant alloy blade and lining tile(changeable), the continuously mixing can up to 160,000 times

● Multi-pipe water spraying to ensure even water distribution.

● Equipped with auto grease pump

    Cement and fly ash weighing

● Adopting air vibrating system, vibrating evenly and better to protect the hopper

● 3 load cell to guarantee the weighing precision

● Equipped SICOMA pneumatic butterfly valve

● Reasonable permeability design can balance the pressure during filling.

Water and additive weighing

● Rough and precise weighing design to ensure the measurement accuracy

● Equipped with stainless steel tank and pump for additive to against rust and corrosion

● Equipped with Electro-pneumatically operated butterfly valve

 Pneumatic system

● Equipped with TAIWAN FUSHENG air compressor

● Adopting TAIWAN AIR TAC air cylinders, valves, hoses, filters and other fittings

● Equipped with small air bag for aggregate batcher and mixing tower to guarantee the enough pressure

Intelligent computer control system

● Wide view control room

● Double control system Fully automatic and manual operation, in English.

● All wires & cables are coded, easy to track and maintenance

● Adopting SIENMENS or SCHNEIDER relay, button, air breaker and contactor

● Easy to set and file the production formula list.

● Easy to check the records and details

● Permission limited to change the parameter

Environment protection system

● Equipped 24m2 impulse dust filter, collection efficiency up to 99.8%. Auto clean and reuse the dust, low maintenance cost.

● External packing for mixing tower, looks beautiful, reduce the dust and noise emission

Model

HZS120

Theoretical production（m3/hr）

120

Aggregate hopper qty

4-6

Aggregate hopper capacity（m3）

25

Aggregate weighing capability (kg)

4500

Slant belt conveyor

Plane belt

Belt conveyor capability (t/hr)

450

Cement weighing capability  (kg)

1200

Fly ash weighing capability(kg)

400

Water weighing capability (kg)

600

Additive weighing capability (kg)

30

Mixer model

MAO3000

Mixer capacity (M3)

2

Mixing type

Twin shaft

Mixing cycle (s)

60

Control system

Intelligent controlling (IPC+INSTRUMENT)

Discharge height (M)

≧4.0

Total power (kw)（without optional parts）

≈133

Total weight(T)（without optional parts）

56

Transportation conditions

4*40HQ+1*40OT Container
