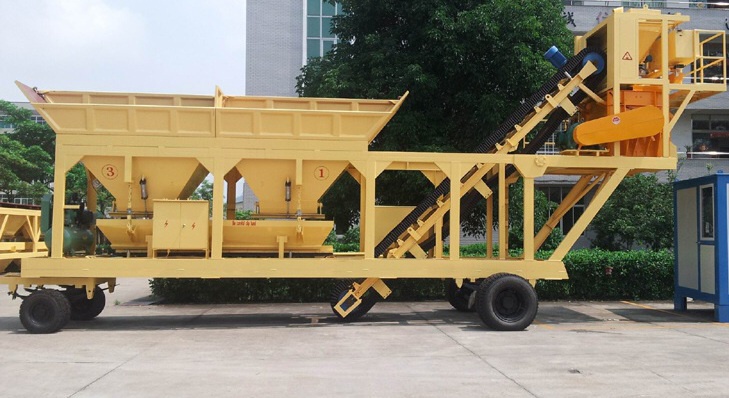

Trailing unit

● Equipped turntable unit, easy to be pull away

● Double axle chassis, easy to move

● Equipped Hydraulic support legs, to make the plant stand stable during the operation

Aggregate batcher

● 4*5m3 aggregate hoppers

● Equipped TAIWAN AIRTAC air cylinder to control the discharge gate

● Equipped HK CHIMEI load cell, guarantee the weighing accuracy

● Equipped OLI vibrator to make sure smooth feeding.

● Each bins with top screen mesh to avoid oversize aggregate

Trough belt conveyor

● Up to 45 degree inclination, stand small area

● Equipped with pulling switch for emergency stop

● Equipped with spiral roller and alloy cleaner to clean the belt

Mixing system

● Twin-shaft compulsory mixer

● Heavy duty design and multi seal protection

● Equipped wear-resistant alloy blade and lining tile(changeable), thecontinuously mixing can up to 160,000 times

● Equipped with auto lubricate pump

Cement and fly ash weighing

● Adopting air vibrating system, vibrating evenly and better to protect the hopper

● Equipped SICOMA pneumatic butterfly valve

● Reasonable permeability design can balance the pressure during filling.

Water and additive weighing

● Equipped with stainless steel tank and pump for additive to against rust and corrosion

● Equipped with Electro-pneumatically operated butterfly valve

Pneumatic system

● Equipped with TAIWAN FUSHENG air compressor

● Adopting TAIWAN AIR TAC air cylinders, valves, hoses, filters and other fittings

Intelligent computer control system

● Fully automatic and manual operation of the system is possible

● All cable /wire with tracking code to provide easy maintenance

● Adopting SIENMENS or SCHNEIDER relay, button, air breaker and contactor

● Flexible production with lots of parameters.

● Records for every batch separately.

Model

YHZS25/35

Theoretical production（m3/hr）

25/35

Aggregate hopper qty

2/4

Aggregate hopper capacity（m3）

10/5

Aggregate weighing capability (kg)

2000

Slant belt conveyor

Trough belt

Cement weighing capability  (kg)

450

Water weighing capability (kg)

250

Additive weighing capability (kg)

15

Mixer model

JS750

Mixer capacity (M3)

0.75

Mixing type

Twin shaft

Mixing cycle (s)

72

Control system

Intelligent controlling (IPC+INSTRUMENT)

Discharge height (M)

≧2.8

Total power (kw)（without optional parts）

≈56

Total weight(T)（without optional parts）

21

Transportation conditions

2*40HQ Container
